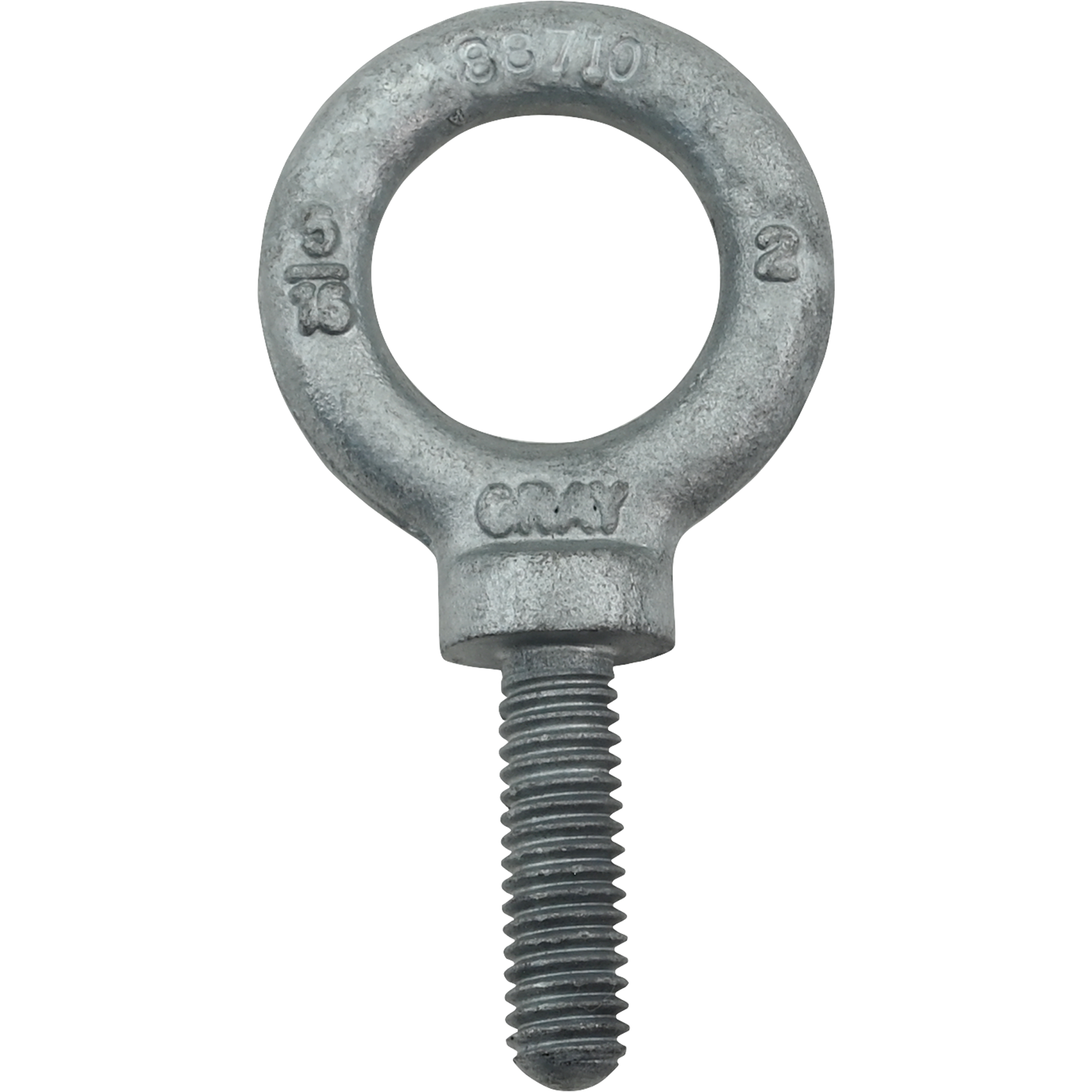

Galvanized Eye Bolts - Shoulder Pattern

Part No.: 88708
Gray Points Earned: 20
Not a Gray Loyalty Club member? Sign Up


Part No.
 Thread Size,UNC-2A   Shank Length (inches)

 I.D. Eye(inches)

 O.D. Eye(inches)

 Overall Length (inches)   Net Weight (lbs.)   Working Load Limit (lbs.)
88708 1/4 - 20 1 3/4 1-3/16 2-3/8 0.04 650
88710 5/16 - 18 1-1/8 7/8 1-7/16 2-13/16 0.09 1,200
88712 3/8 - 16 1-1/4 1 1-11/16 3-9/32 0.17 1,550
88714 7/16 -14 1-3/8 1-1/16 1-13/16 3-9/16 0.24 2,000
88716 1/2 - 13 1-1/2 1-3/16 2-1/8 3-31/32 0.38 2,600
88718 9/16 - 12 1-5/8 1-1/4 2-5/16 4--1/2 0.51 3,200
88720 5/8 - 11 1-3/4 1-3/8 2-9/16 4-3/4 0.71 5,200
88724 3/4 - 10 2 1-1/2 2-13/16 5-1/4 0.99 7,200
88728 7/8 - 9 2-1/4 1-11/16 3-3/16 5-31/32 1.48 10,600
88740 1-1/4 - 7 3 2-3/16 4-7/16 8-7/32 4.40 21,000
  • Forged from bar quality fine grain C1030 / C1035 steel bar.
  • Proof-tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15.

Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline.
Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline.


238 in stock
